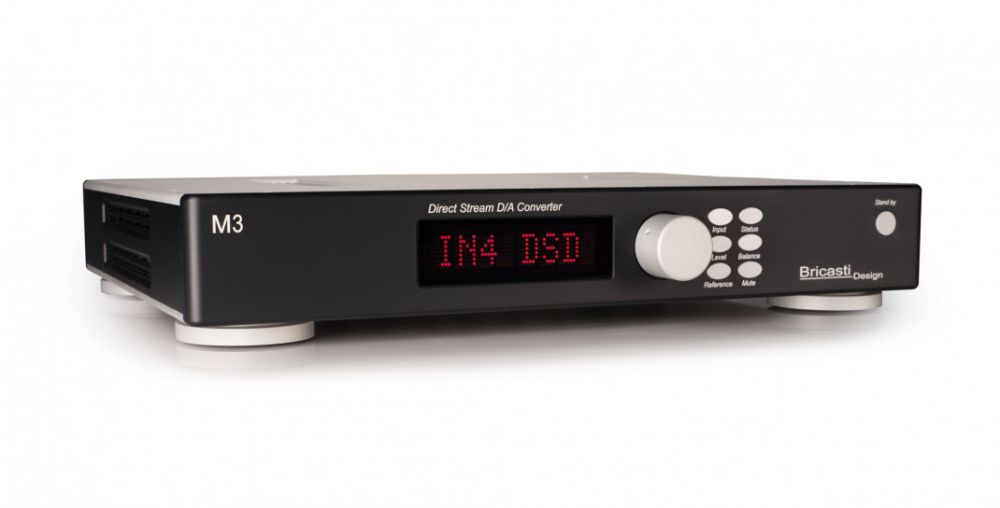

Bricasti Design M-3 DAC - Dual Digital to Analog Converter and ROON streamer

7'100.00 CHF
The Bricasti M 3 offers an incredible array of performance in a more affordable price class. Highlights include two fully differential conversion channels, separate conversion for PCM and native DSD, and a balanced analog level control circuit, making the M3 suitable for all applications.
Eine Demo reservieren
Powerful Architecture

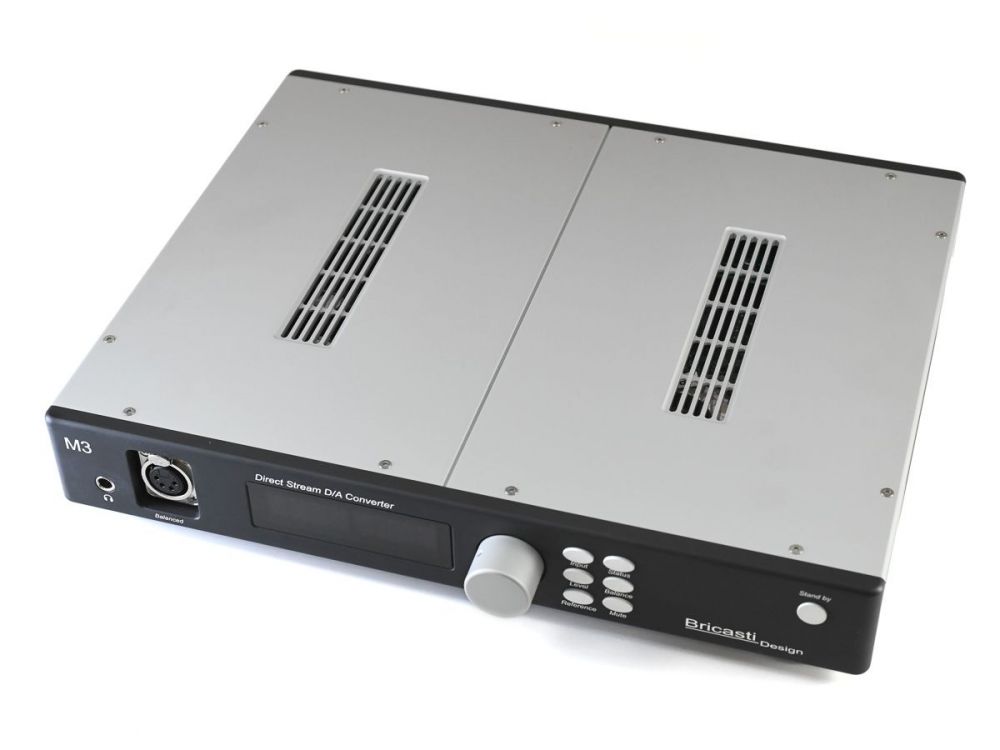

The M3 utilizes two independent linear power supplies for the analog and digital processing to insure low noise and superior isolation. A newly designed chassis made from robust CNC milled aluminum in sections insures superior thermal characteristics, excellent vibrational damping and shielding from RF.

Re-creating sound is an art and a science
The M3’s digital design employs precision DDS clocking that lowers jitter to extremely low levels, insuring a pure digital signal path without the use sample of rate converters, this combined with superior digital filter design, and Native DSD conversion yields a state of the art digital audio path. The M3’s high speed low distortion analog path features a bypass-able preamp class analog level control allowing the M3 to be used to drive power amps directly, with no bit loss for optimal analog performance.

M3H: Fully differential headphone option
The M3H was designed for the discerning headphone aficionado in mind. Featuring independent analog amplifiers for plus and minus on the XLR output to create a fully balanced headphone system with exceptional performance.

Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

Spezifikationen

kompatible Formate : XLR: AES/EBU 24 bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, RJ45: Ethernet (Optional)
Typ DAC : PCM 24 bit delta sigma 8x oversampling, NDSD pure 1 bit conversion for DSD
DSD Native : DSD 64x, DSD 128x
Autonomie : Ohne Batterie
Stromversorgung : 100, 120, 220, 240 VAC, 50 Hz – 60 Hz
Abklingzeit : Nein

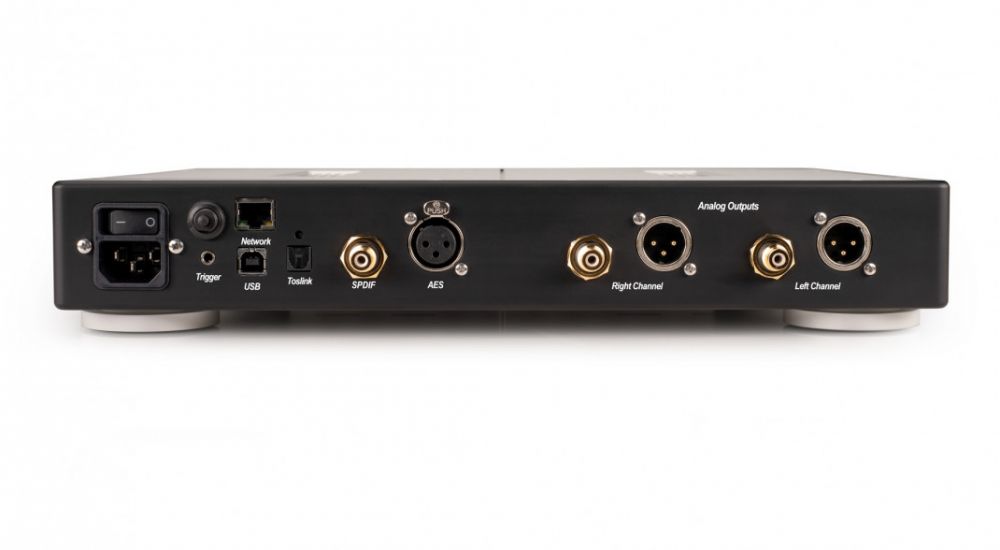

Audio Anschlüsse

Eintrag USB : 1 USB-B
Digitaleingang : 1 Coax, 1 Optical, 1 XLR-AES EBU, 1 USB-B
Kopfhörerausgang : 1x optional XLR on front panel
Cinch ausgang Pre out : 1
XLR Ausgang Pre out : 1
digitaler ausgang : Nein
Bluetooth : Nein

Daten Anschlüsse

Größe

Größe (HxBxT) : 35 x 28 x 63mm
Zubehör : User manual and mains cable
Veredelung : Aluminum
Gewicht : 4,5 kg
Garantie : 2 Jahr
