Divers Audio Alchemy PS-5 - Super Stromversorgung für DDP-1 und PPA-1
598.00 CHF798.00 Sie sparen 200.00
Das externe Netzteil PS-5 ist eine einfache und kostengünstige Option, um noch mehr Musik aus einigen Produkten von Audio Alchemy rauszuholen.
Beschreibung
Power Supply Upgrade
For DDP-1 owners, the PS-5 is an easy and affordable way to improve dynamics, lower the noise floor, and enhance detail, spaciousness and musicality. It immediately and substantially elevates the performance of the DDP-1 by adding a much more advanced and capable power supply. It also complements the aesthetics of the DDP-1, by nesting into the unit, so the PS-5 looks like an integral part of the system rather than an add-on accessory.
Sound Power
Inside the PS-5 are two separate, regulated power supplies: one for analog circuits, the other for digital and control circuits, which provide each the unique power qualities required to maximize their performance. These discrete supplies are routed into the DDP-1 (DAC/Preamp/Headphone Amp) through a special multi-pin connector on the rear of the unit for easy connectivity. Additionally, the AC-to-DC conversion is performed inside the PS-5 to prevent interference with the sensitive analog audio circuits inside the DDP-1. A balanced supply with separate analog and digital/control feeds, separate positive and negative rails for analog circuits, and large banks of storage capacitors for better filtering and improved dynamics.
Key Features
· improve dynamics, lower the noise floor, and enhance detail
· 2 power supplies: one for analog circuits, one for digital and control circuits
· Internal AC-to-DC conversion

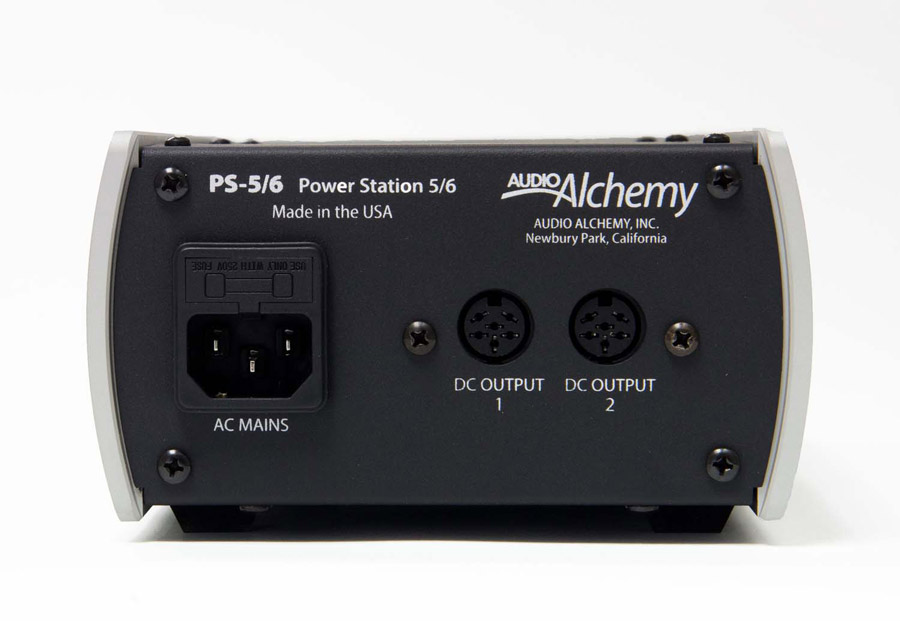

· Quick, easy connectivity with multi-pin connector

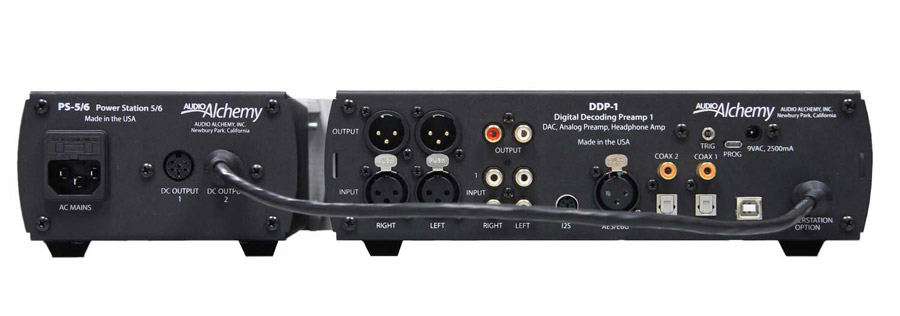

· Seamless visual integration with the DDP-1 and PPA-1
For DDP-1 owners, the PS-5 is an easy and affordable way to improve dynamics, lower the noise floor, and enhance detail, spaciousness and musicality. It immediately and substantially elevates the performance of the DDP-1 by adding a much more advanced and capable power supply. It also complements the aesthetics of the DDP-1, by nesting into the unit, so the PS-5 looks like an integral part of the system rather than an add-on accessory.
Sound Power
Inside the PS-5 are two separate, regulated power supplies: one for analog circuits, the other for digital and control circuits, which provide each the unique power qualities required to maximize their performance. These discrete supplies are routed into the DDP-1 (DAC/Preamp/Headphone Amp) through a special multi-pin connector on the rear of the unit for easy connectivity. Additionally, the AC-to-DC conversion is performed inside the PS-5 to prevent interference with the sensitive analog audio circuits inside the DDP-1. A balanced supply with separate analog and digital/control feeds, separate positive and negative rails for analog circuits, and large banks of storage capacitors for better filtering and improved dynamics.
Key Features
· improve dynamics, lower the noise floor, and enhance detail
· 2 power supplies: one for analog circuits, one for digital and control circuits
· Internal AC-to-DC conversion
· Quick, easy connectivity with multi-pin connector
· Seamless visual integration with the DDP-1 and PPA-1
Spezifizierungen
Voltage output
±20 VDC balanced for analog circuits
+12 VDC for digital/control circuits
Total supply capacitance
40,000 microfarads
Output
multipin connector for interface with DDP-1 & PPA-1
Dimensions
90 x 140 x 295 mm (hwd)
Weight
4.1 kg
±20 VDC balanced for analog circuits
+12 VDC for digital/control circuits
Total supply capacitance
40,000 microfarads
Output
multipin connector for interface with DDP-1 & PPA-1
Dimensions
90 x 140 x 295 mm (hwd)
Weight
4.1 kg
