Pathos InPol-Remix-MKII - Hybrid stereo integrated amplifier 2 x 25 watts 8 ohms Class A
6'528.00 CHF

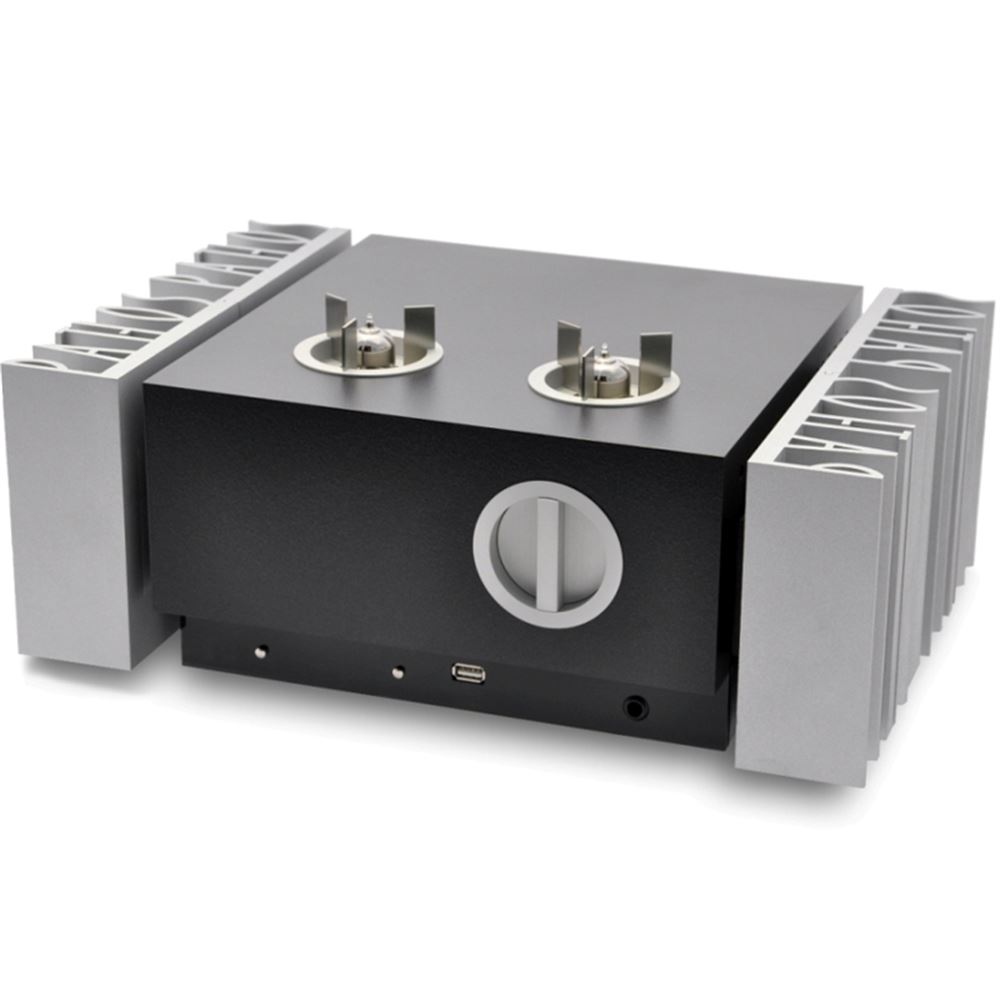

The Pathos InPol Remix MkII is a fully-balanced pure Class A integrated amplifier using the latest generation double-InPol circuitry. The digital bias/gain set technology with intelligent control is entrusted to the same microprocessor which regulates the volume, thus guaranteeing the performance of the amplifier itself and its ability to drive the loudspeakers efficiently. Thanks to the (optional) HiDac Mk2 converter, music lovers who want the best from the latest digital sources will find their demands fully met.
Eine Demo reservieren
Eine Demo reservieren
Ich habe noch kein Konto
Ich habe ein Konto
Beschreibung
InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a system patented by Pathos Acoustics which has enjoyed great success and won many awards.
Inpol devices have a special sonic personality obtainable only by means of this particular circuit design - fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.
This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPol.
Inpol devices have a special sonic personality obtainable only by means of this particular circuit design - fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.
This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPol.
Spezifizierungen
Spezifikationen
Anzahl der Kanäle : 2
Anzahl der Ausgangs Lautsprecher : 2
kompatible Formate : Nein
Abtastrate : Nein
: 2 x 25W@ 8 Ohm, 2 x 38W@ 4 Ohm
Ausgangsstrom Max (Spitze) : Nein
Anzahl der Kanäle : 2
Typ DAC : HiDac Mk2 (option)
Bridgeable : Nein
Interne speicher : Nein
Ripper : Nein
Verstärker Typ : Class A
Frequenzgang : 2 Hz - 150 KHz ± 0,5 dB
Impedanz (Ohm) : 4 - 8 Ohm
Verzerrung (THD) : 0,1% @ 25W
Autonomie : Nein
Stromversorgung : Nein
Artige Spannungsversorgung : Nein
Abklingzeit : Nein
Tone Corrector : Nein
Optionale Module : HiDac Mk2
Audio Anschlüsse
Cinch-Eingang : 4x
XLR eingang : 1x
Eintrag jack : Nein
Interner Phono-Eingang : Nein
Eintrag HDMI : Nein
Eintrag USB : 1x
Digitaleingang : Nein
konfigurierbarer Eingang : Nein
Kopfhörerausgang : 1x 6,35 mm
Cinch ausgang Pre out : 1x
Meldeausgang : Nein
XLR Ausgang Pre out : 1x
Subwoofer-Ausgang : Nein
digitaler ausgang : Nein
Ausgang USB : Nein
Ausgang HDMI : Nein
Sortie Exakt link : Nein
Online-Service : Nein
Radio : Nein
Bluetooth : Nein
NFC : Nein
AirPlay : Nein
Chromecast : Nein
Daten Anschlüsse
RJ45/Lan Port : Ja
IR in : Nein
IR out : Nein
Trigger : Nein
RS 232 : Nein
Control bus : Nein
WiFi : Ja
Software-Update : Nein
kompatible Anwendung : Nein
Multiroom : Nein
Raumanpassung : Nein
Größe
Größe (HxBxT) : 180 x 280 x 370 mm
Zubehör : 1x Remote controller, 1x power cord
Veredelung : Glossy black, glossy white, red glossy
Gewicht : 13,5 kg
Garantie : 2 Jahre
