Thorens MM008-ADC - Phono Vorstufe für MM/MC
439.00 CHF450.00 Sie sparen 11.00
Sowohl Microsoft® Windows® als auch Apple® Mac OS® beinhalten einfache Aufnahmeprogramme. Um das klangliche Potenzial des MM 008 ADC optimal zu nutzen, sollten Sie jedoch ein Aufnahmeprogramm verwenden, das mit einer Auflösung von 24 Bit/96 kHz aufnehmen und Audiodaten verlustfrei abspeichern kann, beispielsweise im Format FLAC oder Apple® Lossless.
Eine Demo reservieren
Eine Demo reservieren
Ich habe noch kein Konto
Ich habe ein Konto
Spezifizierungen
Mode: MM/MC (switchable)
Gain at 1 kHz: 40 dB (MM)/60 dB (MC)
Input impedance (MM): 47 kΩ + 220 pF fixed
nput impedance (MC): 47 kΩ + 1 nF (modifiable with external load plugs)
Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
Frequency response (-3 dB): 10 Hz - 50 kHz
RIAA curve accuracy: ±0.3 dB
THD+N: <0.013% (MM)/<0.055% (MC)
Signal-to-noise ratio: >86 dB (MM)/>72 dB (MC)
Crosstalk: ≧40 dB
Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
Input sensitivity (MC): 0.325 mVrms for -10 dBV output (316 mVrms)
Max. output voltage: 482 mVrms at 5 mVrms input (1 kHz)
Output impedance: 47 Ω

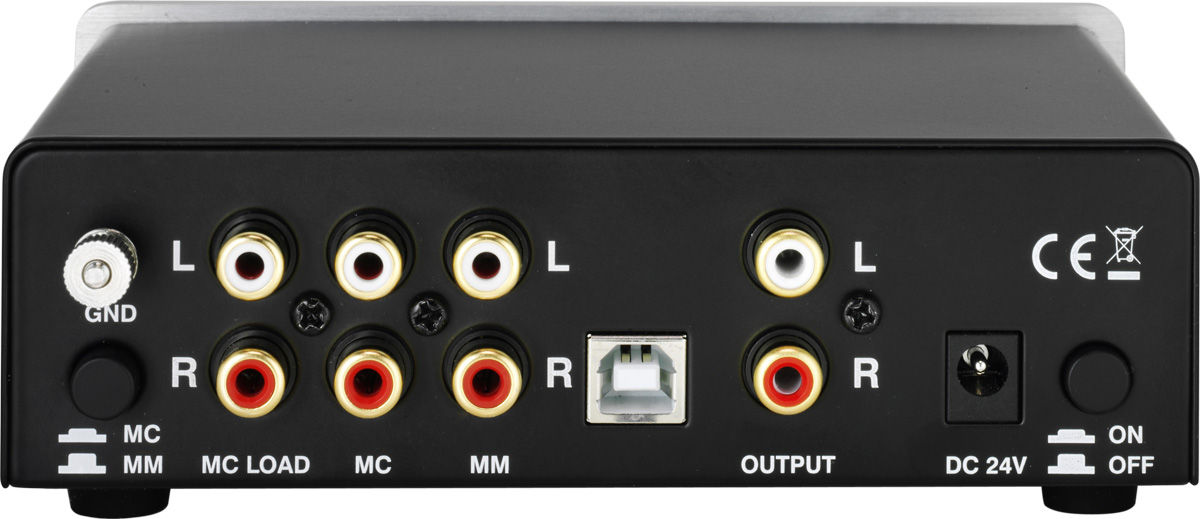

Input connections: 3 pairs of RCA sockets (left/right)
Output connections: 1 pair of RCA sockets (left/right)
Power supply: 24 V DC
Power consumption: 3.5 W/15 mA
Weight: 511 g (not including power supply)
Dimensions (W x H x D): 150 x 50 x 117 mm
A/D converter: Tenor TE7022L 24Bit Delta Sigma
Sampling rates: 8,16, 32, 44.1, 48, 96 kHz
USB output: USB 2.0, fully backward-compatible with USB 1.1
Operating systems: Windows® 8, Windows® 7, Vista, XP, Mac OS®
Gain at 1 kHz: 40 dB (MM)/60 dB (MC)
Input impedance (MM): 47 kΩ + 220 pF fixed
nput impedance (MC): 47 kΩ + 1 nF (modifiable with external load plugs)
Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
Frequency response (-3 dB): 10 Hz - 50 kHz
RIAA curve accuracy: ±0.3 dB
THD+N: <0.013% (MM)/<0.055% (MC)
Signal-to-noise ratio: >86 dB (MM)/>72 dB (MC)
Crosstalk: ≧40 dB
Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
Input sensitivity (MC): 0.325 mVrms for -10 dBV output (316 mVrms)
Max. output voltage: 482 mVrms at 5 mVrms input (1 kHz)
Output impedance: 47 Ω
Input connections: 3 pairs of RCA sockets (left/right)
Output connections: 1 pair of RCA sockets (left/right)
Power supply: 24 V DC
Power consumption: 3.5 W/15 mA
Weight: 511 g (not including power supply)
Dimensions (W x H x D): 150 x 50 x 117 mm
A/D converter: Tenor TE7022L 24Bit Delta Sigma
Sampling rates: 8,16, 32, 44.1, 48, 96 kHz
USB output: USB 2.0, fully backward-compatible with USB 1.1
Operating systems: Windows® 8, Windows® 7, Vista, XP, Mac OS®
