Weiss Audio Helios - DAC Professional High End level network music streamer up to 384 kHz, DSD64 and 128
19'674.00 CHF Télécommande incluse

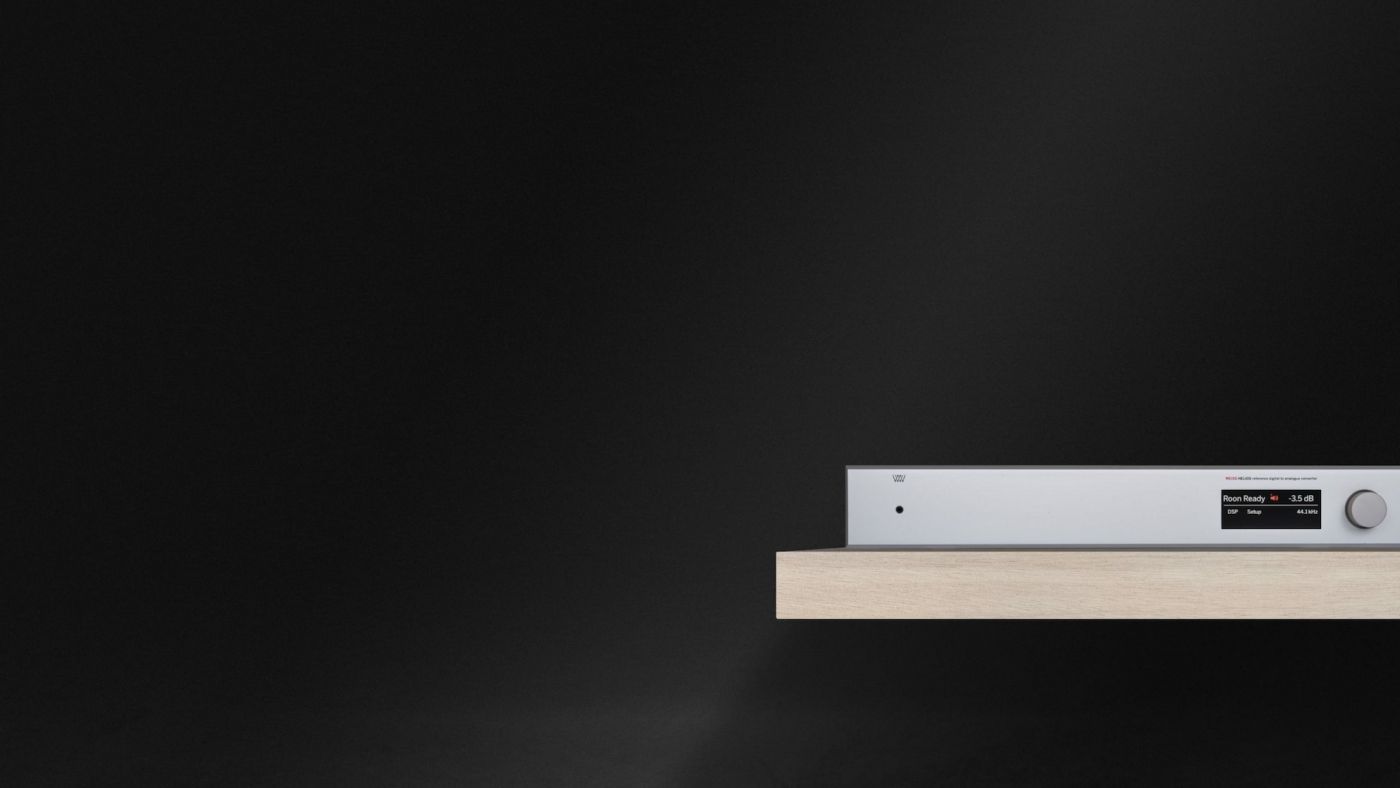

The Weiss Audio Helios is our new state of the art D/A Converters with an unprecedented level of sophistication and versatility. With the Helios we are creating a new paradigm for what used to be a black box device. A typical D/A Con- verter is a ”set and forget” device. Not so with the Helios. It adds a number of interesting signal processing features and sports a variety of digital inputs. Furthermore, the unit functions as a pre-amp, headphone amp, and a streamer (UPnP/ROON).
Beschreibung
Weiss Engineering has a 30 year history in D/A Converter design. In that time span we have learned a thing or two about converter design. The Helios is the essence of our experiences.
The three interfaces:
We offer you three possibilities to control the Helios - so you can adjust the use and interaction of the Helios to your own special needs. In the following these three user interfaces are explained in more detail:

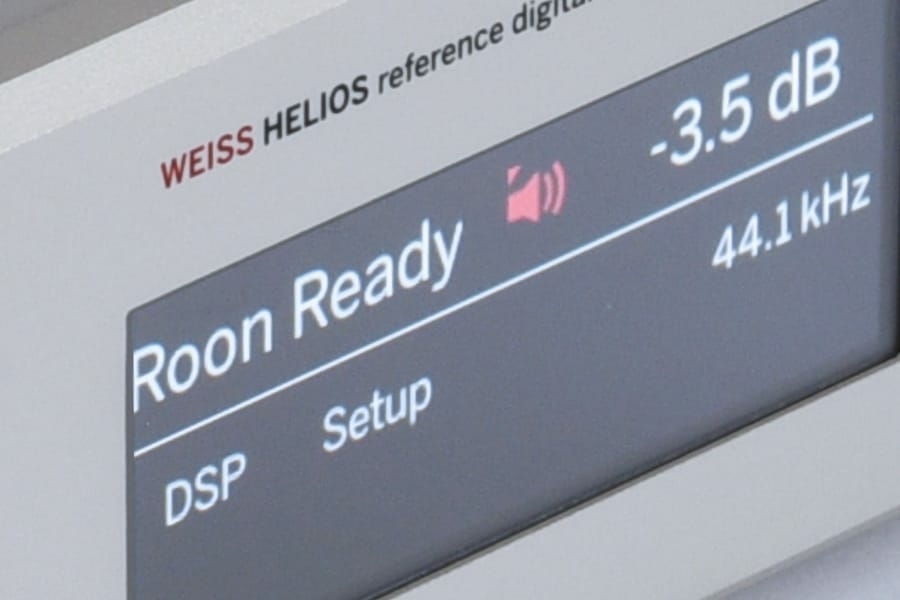

The LCD touch screen and rotary knob on the faceplate
The IR remote control
The web interface built into the Helios
The three interfaces:
We offer you three possibilities to control the Helios - so you can adjust the use and interaction of the Helios to your own special needs. In the following these three user interfaces are explained in more detail:
The LCD touch screen and rotary knob on the faceplate
The IR remote control
The web interface built into the Helios
Spezifizierungen
Power: Mains voltage: 100...120 V or 200...240 V, automatic voltage selection
Fuse rating: 500 mA slow blow
Power consumption: 25 VA max.
Power consumption in standby: 2.2 VA max.
Size Helios:
Depth: 30 cm
Width: 45 cm
Height: 6.6 cm
Height with feet: 7.4 cm
Weight: 9.4 kg
Size Remote:
Depth: 2.1 cm
Width: 4.5 cm
Height: 16.6 cm

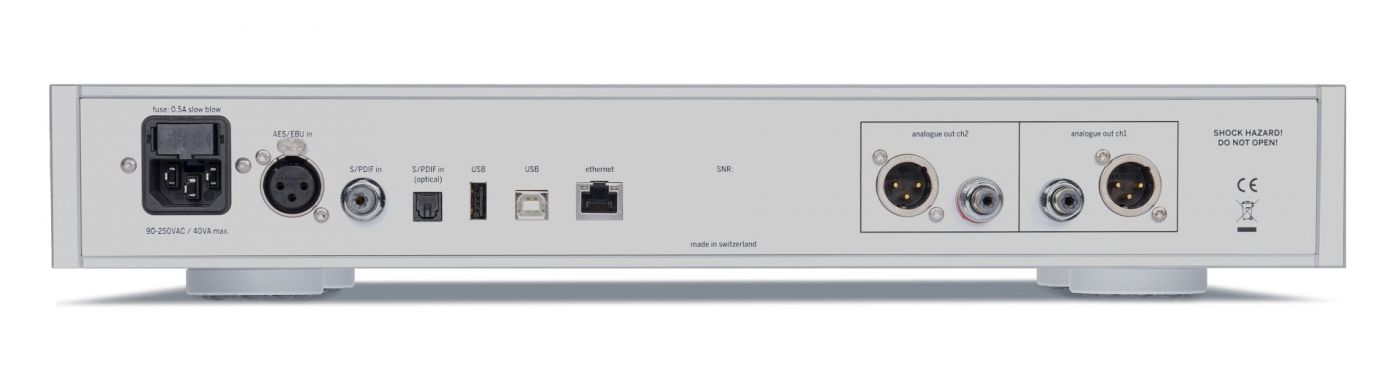

Digital Inputs:
(1) XLR connector
(1) RCA connector
(1) TOSLINK connector (optical) • (1) USB type B connector
(1) RJ45 Ethernet connector
All inputs accept professional or consumer standard, i.e. accept AES/EBU or S/PDIF signals.
Sampling frequencies:
AES/EBU and S/PDIF inputs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz • USB and RJ45 Ethernet inputs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, DSD64, DSD128
Toslink input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Input word-length: max. 24 / 32 Bits
Digital Outputs: None
Analog Outputs:
(2)XLRconnectors (hotonpin2), short circuitproof output circuitry, DCcoupled, lowoutputimpedance
(2) RCA connectors, short circuit proof output circuitry, DC coupled, low output impedance
XLR Output:
0dB setting: 16.3 Vrms +26.5 dBu
-4dB setting: 10.2 Vrms +22.5 dBu
-8dB setting: 6.5 Vrms +18.5 dBu
-12dB setting: 4.1 Vrms +14.5 dBu
-16dB setting: 2.6 Vrms +10.5 dBu
-20dB setting: 1.6 Vrms +6.5 dBu
-24dB setting: 1.0 Vrms +2.5 dBu
-28dB setting: 0.65 Vrms -1.5 dBu
As input a 0 dBFS sine wave signal was used:
These levels are achieved with a 0.0 dB setting for the level control on the LCD screen.
RCA Output: half the values of XLR (-6 dBu):
As input a 0 dBFS sine wave signal was used
These levels are achieved with a 0.0 dB setting for the level control on the LCD screen.
Synchronization:
Via the input signal in case of the AES/EBU and S/PDIF inputs. Via the internal oscillator in the case of USB and Ethernet inputs.
D/A Converter chip:
Over-sampling multi-bit sigma-delta converter - Four converters per audio channel.
