MHDT Laboratory Havana DAC à Tube Symétrique 24-bit/96-kHz
899.00 CHFPrix neuf: 1'290.00 Économisez 391.00
Occasion sans garantie, sans accessoire et sans droit de retour.
Les ingénieurs de MHDT Lab ont développé un montage à tube unique! Le Havana symétrique est un extraordinaire convertisseur digital vers analogique 24-bit/96-kHz (S/PDIF). Jamais vos sources digitales n'ont pu être restituées avec une telle musicalité et un son aussi riche et naturel.
Réserver une ecoute
Les ingénieurs de MHDT Lab ont développé un montage à tube unique! Le Havana symétrique est un extraordinaire convertisseur digital vers analogique 24-bit/96-kHz (S/PDIF). Jamais vos sources digitales n'ont pu être restituées avec une telle musicalité et un son aussi riche et naturel.
Réserver une écoute
Je n'ai pas encore de compte
J'ai déjà un compte
Spécifications
- Total 4 PCM56 dac chips were used, each chip is independent for right and left as well as positive and negative signals.
- In RCA connection, this dac is the same as original Havana Dac.
- In XLR connection, you get double amplitude signal out.
- CS8414 digital input with non-oversampling structure.
- This is traditional DAC, cannot decode HDCD signal.
- The digital signal accepted is based on the capability of CS8414 digital receiver, which means the max: 96KHz 24bits input Spdif format.
- USB input: Up to 48KHz 24bits then convert to spdif then to CS8414
- No digital filter, no Op-amp

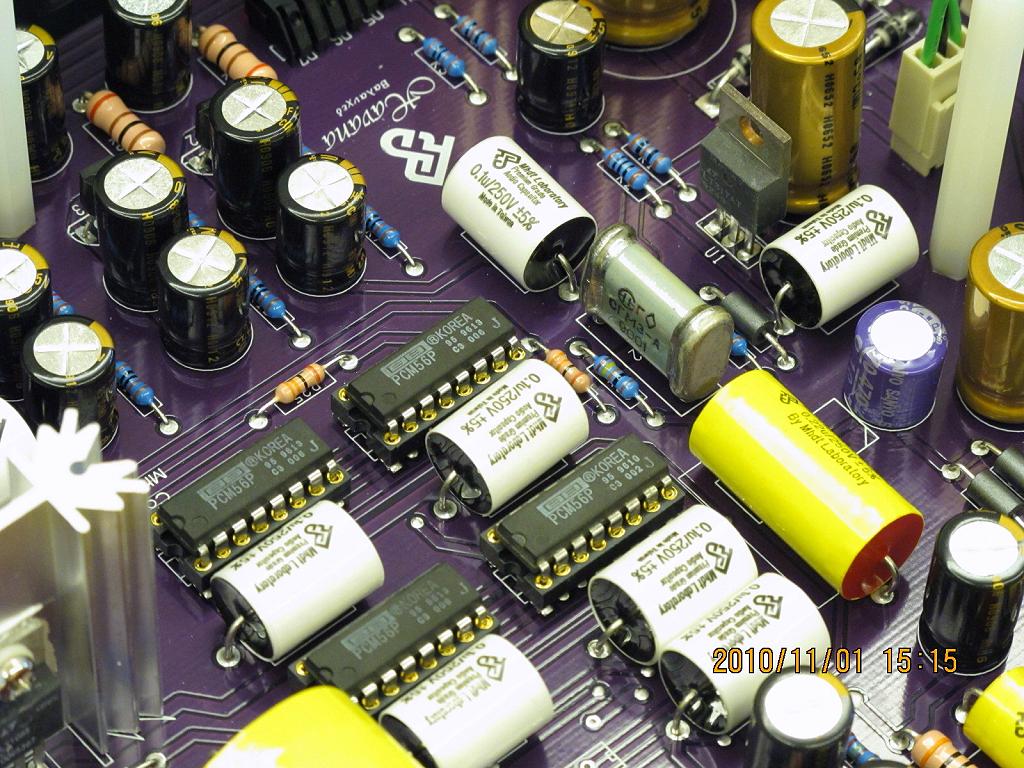

- Utilize legendary R-2R multi-bits Burr Brown PCM56P-J (16 bits) DAC chip.
- No differential phase shift in both channels.
- More detailed yet natural and musical sounding.
- Metal case, with silk brushing aluminum plates , acrylic front panel.

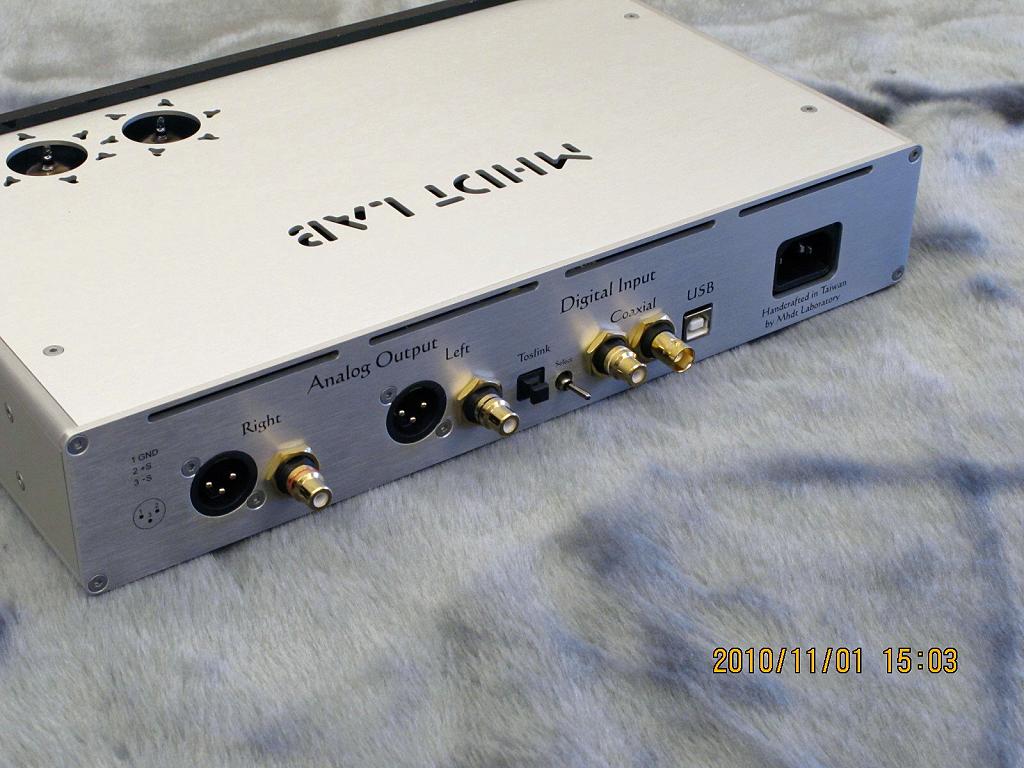

- 1 x USB input, 2 x Coaxial input (1 RCA , 1 BNC), 1 x Toslink optic input.
- Tube buffered output, tube installed GE5670
- Tubes can be used: 5670, 2C51, 396A, 6385, 6386, 6CC42, 6854, 6N3P,6N26P
6854, CV2575, CV4013, CV5894, CV8247, CV2381
- 115/230V power supply selectable from internal PCB jump pins setting
- Output 2.6V, < 800 ohms,
- Dimension: 34.6m(L) x 20cm (W), 7.5cm (H)
- Weight: 2.7Kg
